Check Dimensions Of Raised Face Nipo Flange In A105 Carbon Steel And Pn16 Nipo Flange, Nipo Flange 150 Lbs
View Nipo Flange Awwa C207 Class D Weigh Chart And API 6A Nipoflange Flange Price List In India, Copper Nipoflange Flange Supplier In Mumbai

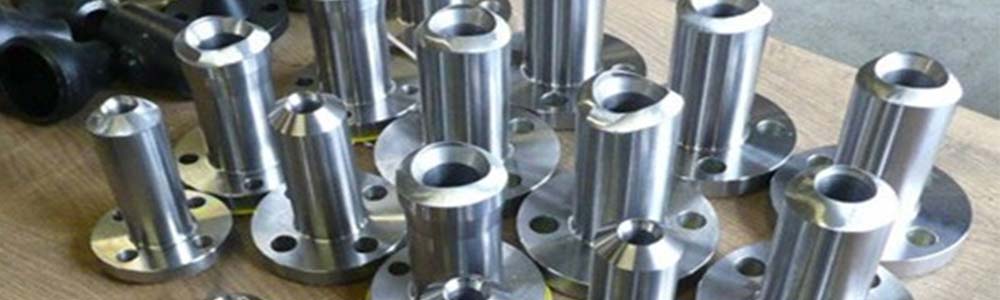

Similar to Weldoflange, Nipo Flange Asme B16.5 Class 300 is a combination of a welding Neck flange and a forged Nipolet. The 2 components of the Nipo Flange Din En 1092-1 are manufactured together as one piece. Nipo Flange Jis 16k is not welded, but is forged together. Primarily, the Nipo Flange Awwa C207 Class D is used in Branch connections. Generally, Stainless Steel Nipo Flange Manufacturer produce this Nipo Flange Class 600 which is used for branch pipelines, that are to be constructed at 90 degrees.
In order to install a Nipo Flange Jis 5k, the piping staff has to be welded with the Nipolet part of the device. This Pn16 Nipo Flange device will run on the pipe and will bolt the flanged part on the Nipo Flange Jis 10k of the branched pipe.Nipo Flange A105 are available in different materials such as carbon steel , stainless steel grades, including grades like duplex as well as super duplex and various alloy grades such as nickel .
Standard Specification :
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Stainless Steel | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L |
| Duplex & Super Duplex Steel | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Carbon Steel | ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 |
| Low Temperature Carbon Steel | ASTM A350, LF2, LF3 |
| Alloy Steel | ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 |
| Copper Alloy Steel | ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |
| Nickel Alloy | ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) |
APPROVED IN THE FOLLOWING TOP REFINERIES ACROSS THE GLOBE
Application Industry
- Chemical Industry
- Oil & Gas Industry
- Power Genration Industry
- Sugar Industry
- Food Processing Industry
- Paper & Pulp Industry
- Offshore and Onshore Services
